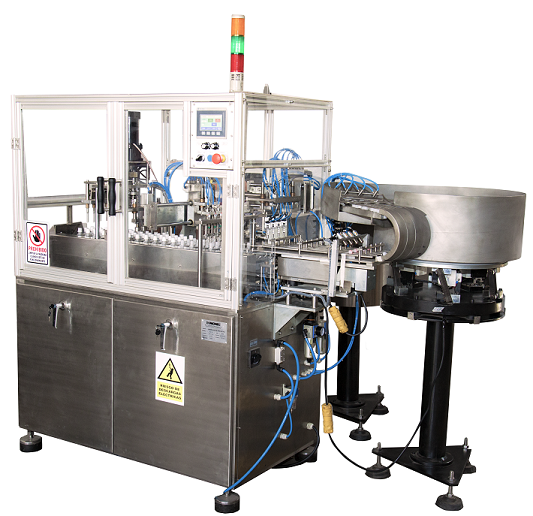

The machine automatically assembles the 2 parts that make up a Doy Pack lid, in this case called VALVE and LID.
It is equipped with 2 feeding systems (caps and valves), a valve placement station, a cap placement station and a threading station.

  • Individual control of machine components.
  • Touch panel for entering the machine’s service menus and warning of faults.
  • Security guards.
  • Automatic stop due to absence of covers, door opening, insufficient pneumatic pressure.

Sectors that can benefit:

  • Plastic Industry
  • Pharmaceutical Industry
  • Cosmetic Industry
  • Food Industry.

TECHNICAL CHARACTERISTICS

PRODUCTION     4 lanes, 70 Caps x minute.
6 lanes, 100 Tapas x minute.
8 lanes, 140 Tapas x minute.
 FORMATS     up to 2 cap sizes.
ELECTRICAL POWER SUPPLY    Triphasic 220 / 240 / 380 VAC – 60 / 50 Hz.
PNEUMATIC FEED   6.5 – 8.0 bar gauge
TRANSMISSION     Main engine 1/3 HP.
CONTROL     PLC Siemens, touch screen.
POWER     1.5 KVA
CONSUMPTION     828 L/min.
MEASUREMENTS     2.22 m (wide) x 1.50 m (length) x 1.6 m (height)
